product description

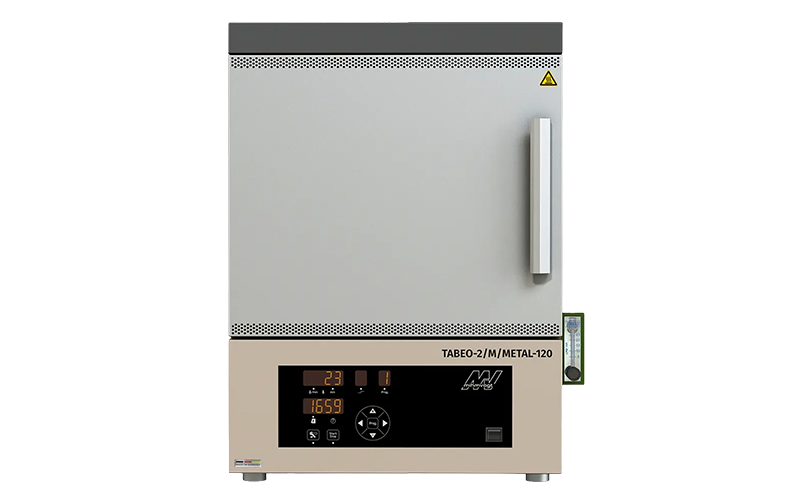

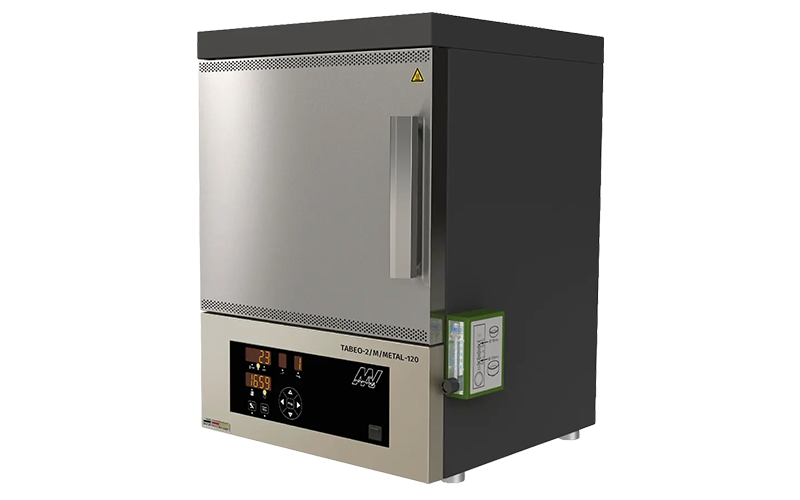

Sintering furnace Tabeo for Metal
30 single crowns or sintering discs
- Molybdenum-disilicide heating elements
- Sintering system, Ø 120mmx30mm; METAL (kit)
- Program control:
- 7-Segment LED
- 4 stages
- 9 program capacity
- 4 fixed programs
- Shielding-gas supply with manual adjustment
- Timer function
Technical data
| Dimensions (W x D x H) | 530 x 680 x 460mm |
| Heating-chamber height | 92 mm |
| Heating-chamber capacity | 1 tray Ø 120x 30 mm |
| Maximum temperature | 1400 °C |
| heating elements | 4 x MoSi2 |
| Power max. | 1600 W |
| Voltage range; frequency | 220 - 240 V, 50 / 60 Hz |
| Maximum heating rate | 40 °C/min |
| Weight | 80 kg |
| Sintering furnace Tabeo for Metal | Art.-No. 483-3000 |
